Recently, Hebei Hangyun Co., Ltd. completed a new order of HY1225 stainless steel cable mesh for a large open aviary project in Canada. The project was designed for a wildlife reserve and aims to provide a safe, spacious, and natural environment for a variety of wild birds.
For large open aviaries, the enclosure system needs to do more than simply prevent birds from escaping. It must provide sufficient protection while maintaining excellent visibility, ventilation, natural lighting, and a spacious environment. Stainless steel cable mesh has become a practical solution for these requirements because of its combination of strength, flexibility, transparency, and corrosion resistance.
Project Overview
For this Canadian project, the customer selected the following stainless steel cable mesh specification:

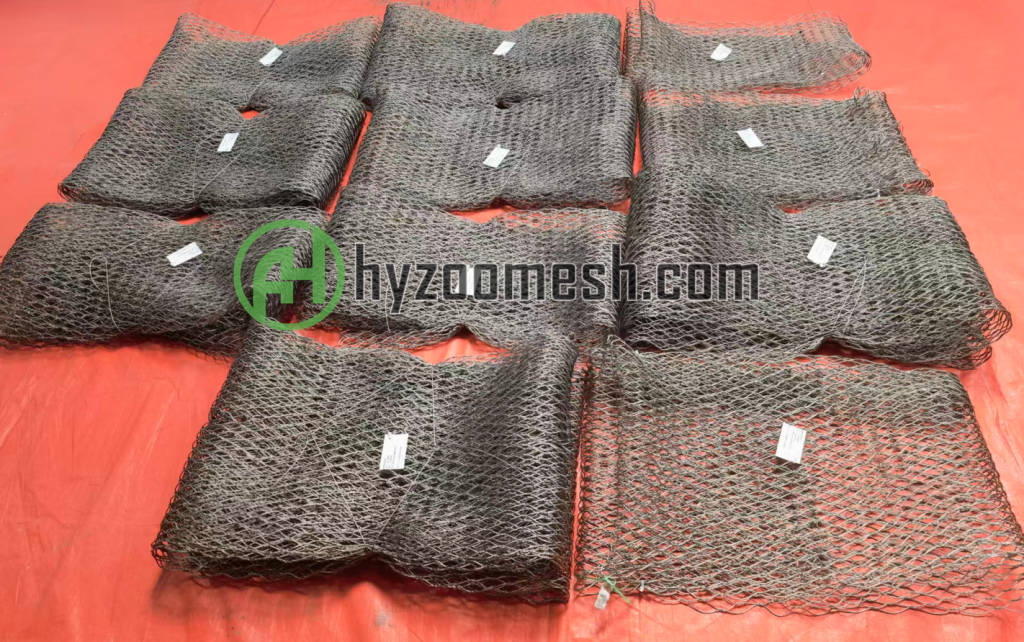

- Product: HY1225 Stainless Steel Woven Cable Mesh
- Material: AISI 316 Stainless Steel
- Wire Diameter: 1.2 mm
- Mesh Opening: 25 × 25 mm
- Surface: Natural Stainless Steel Color
- Application: Large Open Aviary for a Wildlife Reserve
- Project Location: Canada
The 25 × 25 mm mesh opening provides a relatively fine barrier suitable for applications where bird containment and enclosure safety are important considerations. The AISI 316 stainless steel material also provides enhanced corrosion resistance for long-term outdoor applications.

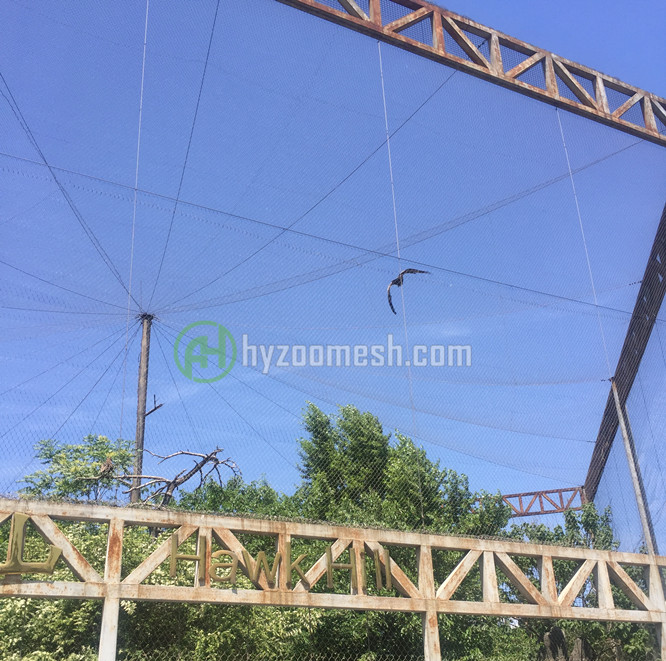

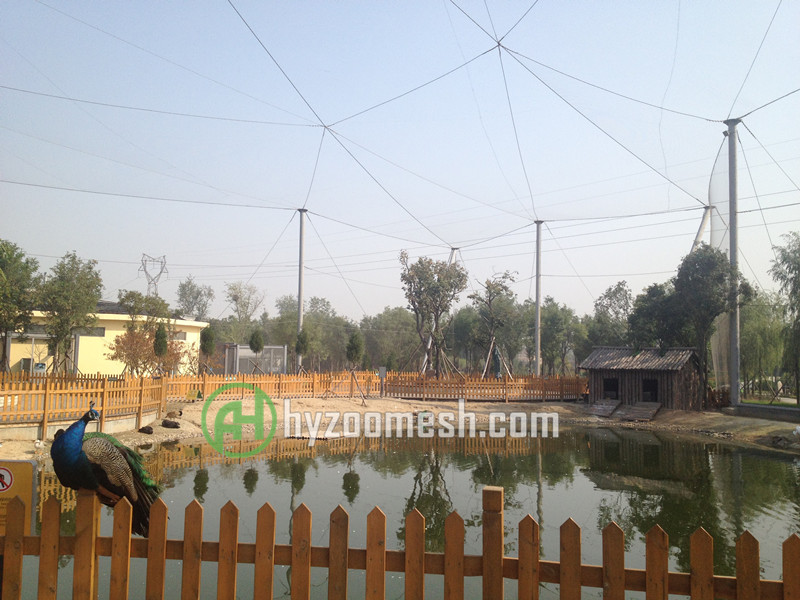

What Is a Large Open Aviary
Large open aviaries are commonly used in zoos, wildlife reserves, bird conservation centers, and breeding facilities. Unlike traditional small cages, these structures are designed to provide birds with a much larger area for flying, climbing, resting, and natural activities.
Many modern aviaries feature semi-open or fully outdoor environments. Their design often incorporates trees, plants, water features, rocks, and other natural elements to create an environment that is visually and functionally closer to the birds’ natural habitat.
This type of enclosure presents several engineering challenges. The mesh may need to cover large areas and considerable heights while remaining visually unobtrusive. At the same time, it must withstand outdoor weather conditions and provide a reliable physical barrier.
This is where stainless steel cable mesh can offer significant advantages.
Why Stainless Steel Cable Mesh Is Suitable for Aviaries
1. High Transparency for a More Natural Viewing Experience
One of the main advantages of stainless steel cable mesh is its relatively slim and open structure.
Compared with solid walls or heavy rigid fencing, stainless steel cable mesh creates much less visual obstruction. Visitors can observe birds more naturally, while the enclosure itself becomes less visually dominant.
For wildlife reserves and modern zoos, this supports an open and immersive landscape design while maintaining the necessary physical boundary.
2. Flexible Structure for Large and Irregular Spaces
Large aviaries can have complex structures, including tall walls, curved surfaces, domed roofs, and irregular enclosure shapes.
The flexible nature of stainless steel rope mesh makes it suitable for these applications. The mesh can adapt to different supporting structures and can be tensioned across relatively large areas according to the requirements of the project.
This flexibility is particularly useful when designing large-scale aviaries where rigid panels may be difficult to adapt to curved or irregular structures.
3. Smooth Stainless Steel Construction

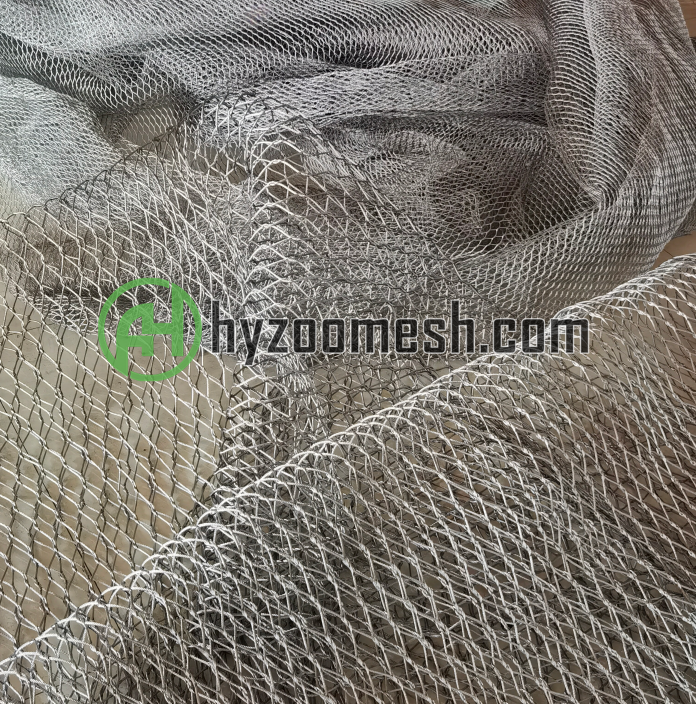

The HY1225 mesh used in this project is manufactured from stainless steel cable and features a woven flexible structure.
Its smooth surface and flexible construction make it suitable for animal enclosure applications where minimizing sharp edges and rigid components is important.
For bird enclosures, mesh selection should always consider the species, body size, beak characteristics, flight behavior, and potential interaction with the enclosure. Choosing an appropriate mesh opening and rope diameter is therefore an important part of the overall enclosure design.
4. Strength and Resistance to Bird Activity
Birds can interact with enclosure mesh in many ways. Larger birds and parrots, for example, may repeatedly land on, climb, or peck at the mesh.
Stainless steel cable mesh has a flexible yet strong structure. The woven rope construction provides good tensile performance and helps the enclosure maintain its structural integrity when subjected to normal bird activity.
The actual specification should be selected according to the species and project requirements. For this Canadian project, the customer selected 1.2 mm stainless steel rope with a 25 × 25 mm mesh opening.
5. Excellent Ventilation and Natural Lighting
Because stainless steel cable mesh is an open mesh system, air can pass freely through the enclosure.
This is particularly valuable for large outdoor aviaries. Good airflow helps maintain a more natural environment and avoids the closed-in feeling associated with solid barriers.
At the same time, natural sunlight can enter the aviary without being significantly blocked by the enclosure material.
The combination of ventilation, natural lighting, and high visibility makes stainless steel cable mesh well suited to open-air bird habitats.
6. Corrosion Resistance for Long-Term Outdoor Applications
Outdoor aviaries are exposed to rain, humidity, sunlight, bird droppings, and, depending on their location, coastal salt spray.
For projects requiring higher corrosion resistance, AISI 316 stainless steel is an appropriate material option because of its molybdenum content and improved resistance to chloride-related corrosion compared with AISI 304.
This makes 316 stainless steel particularly useful for demanding outdoor or coastal environments.
With proper specification and installation, stainless steel cable mesh can provide a long service life and reduce the need for frequent replacement associated with less corrosion-resistant materials.
7. Customized Mesh Openings for Different Bird Speicies
Bird species vary considerably in body size and behavior. Therefore, there is no single mesh opening suitable for every aviary.
Mesh openings can be selected according to:
- Bird species and body size
- Escape prevention requirements
- Beak and claw characteristics
- Interaction with the mesh
- Presence of other animals or predators
- Overall enclosure design
For projects housing multiple bird species, the mesh specification needs to balance containment, animal safety, visibility, and ventilation.
The 25 × 25 mm opening selected for this Canadian project provides a relatively fine mesh structure for the intended application.
Why Choose Hebei Hangyun for Zoo and Aviary Projects
1. Nearly 30 Years of Stainless Steel Cable Mesh Manufacturing
Hebei Hangyun has been specializing in stainless steel wire rope mesh manufacturing for nearly 30 years.
Over the years, our products have been supplied to customers involved in zoos, wildlife parks, bird conservation facilities, and other animal enclosure projects around the world.
Our experience allows us to provide practical product recommendations based on different enclosure applications, animal species, mesh dimensions, and environmental conditions.
2. Factory-Direct Manufacturing and Custom Production
As a manufacturer, Hangyun can customize stainless steel rope mesh according to project requirements.
Available options include:
- AISI 304 or AISI 316 stainless steel
- Different rope diameters
- Different mesh openings
- Customized panel dimensions
- Natural stainless steel or black surface options
- Different mesh configurations for animal enclosure applications
The mesh can also be manufactured for projects involving large, curved, or irregular enclosure structures.
3. Quality Control and Material Selection
Each order is manufactured according to the confirmed specifications. We pay particular attention to wire rope diameter, mesh opening, panel dimensions, weaving quality, and overall appearance.
For international projects, material documentation and relevant inspection documents can be provided according to customer requirements.
4. Technical Support for Quotation to Installation
For zoo and wildlife projects, choosing the correct mesh specification is only one part of the process.
Before production, Hangyun can assist customers in confirming:
- Mesh opening
- Rope diameter
- Stainless steel grade
- Panel dimensions
- Quantity
- Installation method
- Project environment
After production, we can also provide installation instructions and technical information to help customers complete the installation process.
Applications
A Reliable Mesh Solution for Modern Aviaries
The completion of this Canadian HY1225 order demonstrates the suitability of stainless steel cable mesh for large outdoor bird enclosure applications.
For modern aviaries, the enclosure material needs to balance safety, visibility, flexibility, ventilation, durability, and aesthetics. Stainless steel cable mesh offers a combination of these characteristics while allowing designers to create large and visually open animal habitats.
At Hebei Hangyun, we continue to focus on stainless steel cable mesh manufacturing and provide customized solutions for zoos, wildlife parks, bird conservation centers, and other animal enclosure projects.
With nearly 30 years of manufacturing experience and cooperation with more than 200 zoos and animal-related projects worldwide, we are committed to providing high-quality products, efficient service, and practical technical support for international customers.
If you are planning a large aviary or wildlife enclosure project, please contact Hangyun with your required mesh opening, rope diameter, dimensions, material, and application. Our team can recommend a suitable stainless steel cable mesh specification based on your project requirements.
