Black Oxide Stainless Steel Wire Rope Mesh
Stainless steel wire rope mesh is divided into two categories according to different colors: natural color stainless steel wire rope mesh and black stainless steel wire rope mesh.
Black oxide stainless steel wire rope mesh is made by using a special process to oxidize the natural stainless steel wire rope mesh, the surface is black. In addition to having the same weaving process, specifications and anti-corrosion, flexible, sturdy, easy to shape, and aesthetic characteristics as natural color stainless steel woven mesh.The low-key balck color also has the characteristic of peotecting animal vision. The black oxide stainless steel wire rope mesh is more transparent, with a more user-friendly viewing effect.
Advantages of black oxide stainless steel wire rope mesh produced by Hangyun manufacturer:
- Beautiful and highly transparent, providing a friendly viewing effect for animals and visitors.
- Flexible and resilient, suitable for installation in various styling locations.
- Strong, corrosion-resistant, long service life, maintenance free.
- Safety and eco-friendly.
- Pure hand-woven, customized size.
- Easy to transport and install.
Classification
According to the manufacturing process, black stainless steel wire rope mesh can be divided into two main types: black stainless steel woven mesh and black stainless steel ferrule mesh.
Black stainless steel woven mesh is made by twisting and interweaving stainless steel wire ropes at each intersection to form a strong and flexible mesh structure. The wire ropes are securely connected through the weaving process, creating a durable mesh with a uniform appearance and excellent flexibility.

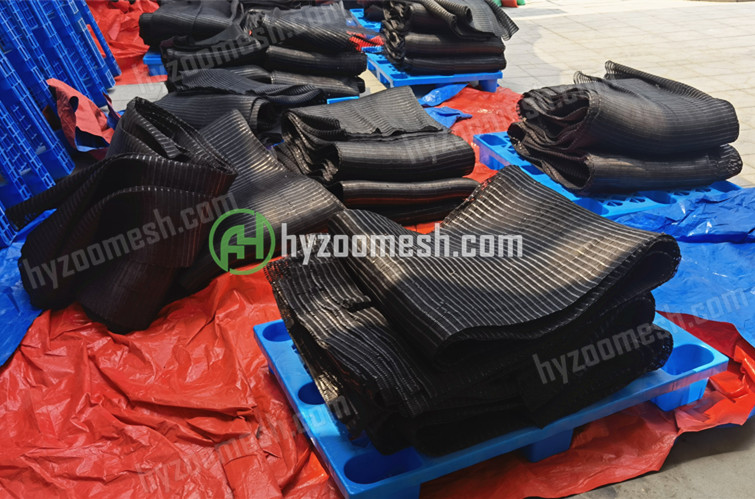

Black stainless steel ferrule mesh also known as black stainless steel buckle mesh, is made by connecting stainless steel wire ropes with seamless stainless steel ferrules at each intersection. The ferrules securely hold the wire ropes together, creating a strong, flexible, and neatly structured mesh. Compared with woven mesh, ferrule mesh has a more regular and uniform appearance, making it suitable for applications where both functionality and aesthetics are important.
Application Cases

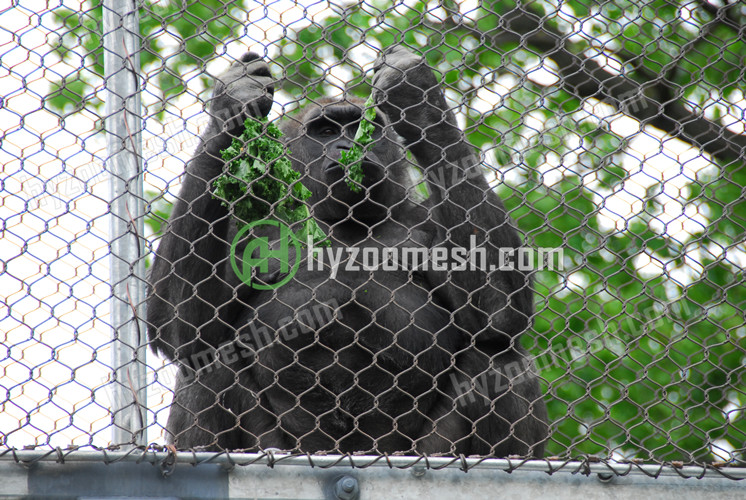

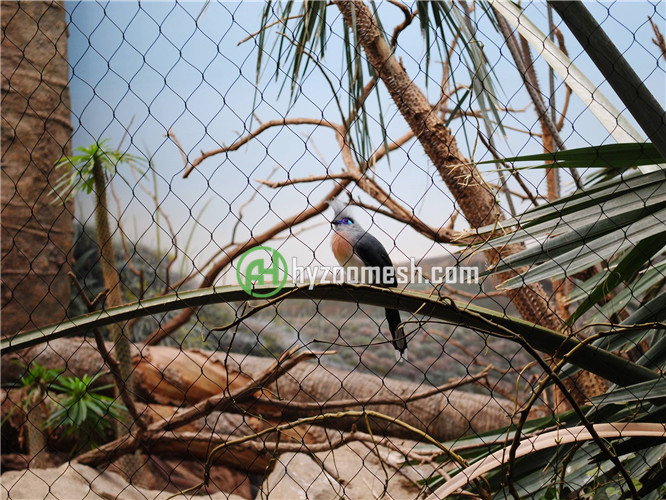

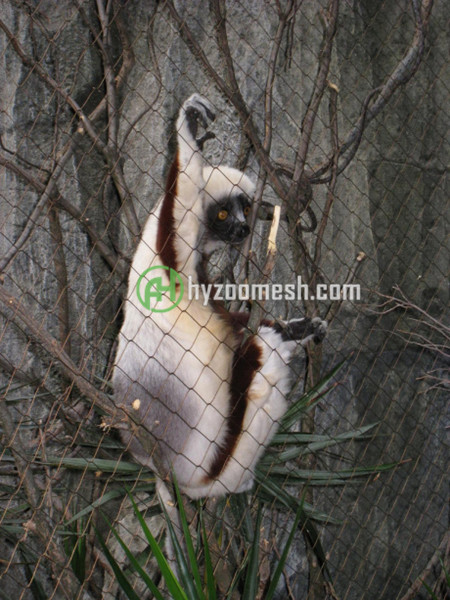

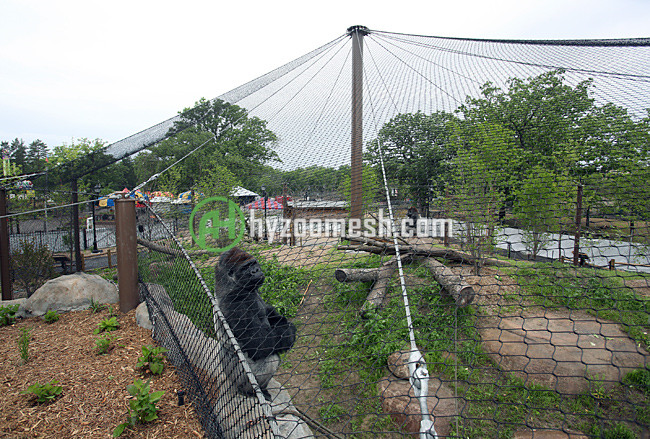

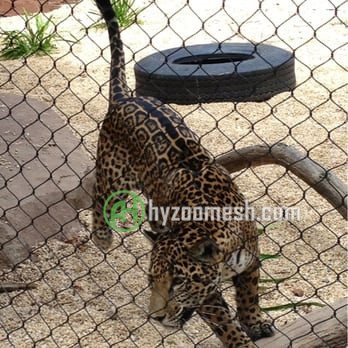

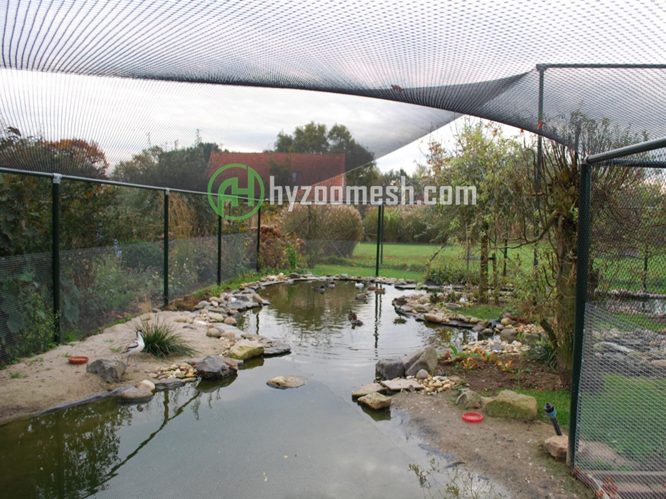

The black oxide stainless steel wire rope mesh produced by Hangyun is hand-woven from high-quality stainless steel wire rope and treated with a black oxide finish. It combines strength, flexibility, corrosion resistance, and a low-visibility appearance, making it suitable for a wide range of applications, including zoo mesh, bird aviaries, monkey enclosures, large-animals fencing, decorative mesh, building protection, safety fencing, and other protective structures.
With nearly 30 years of manufacturing experience, Hangyun has supplied stainless steel wire rope mesh to customers in many countries and regions around the world. Our experience in production and customized mesh solutions enables us to provide products for different applications and project requirements.

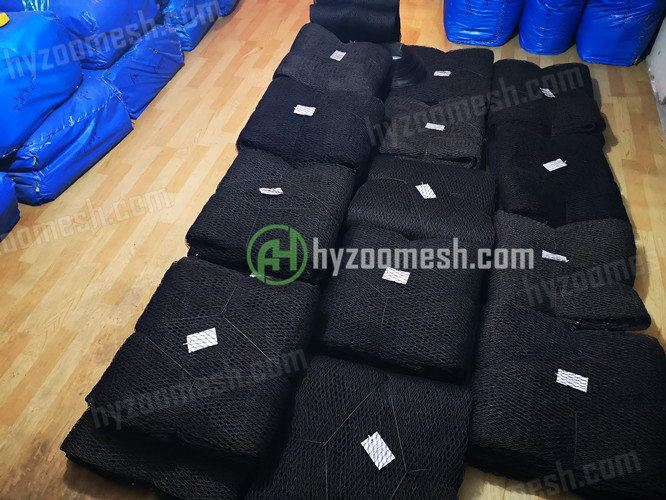

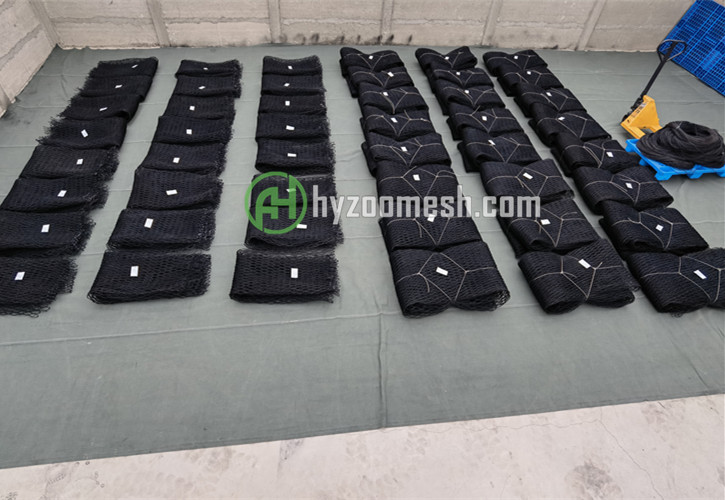

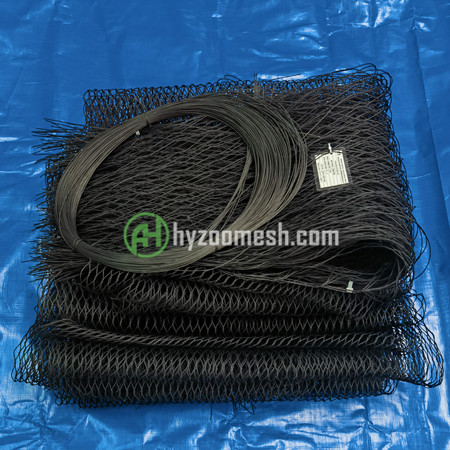

Below, you can find product photos and application project images of Hangyun’s black oxide stainless steel wire rope mesh, showcasing its appearance, structure, and use in different enclosure and architectural applications.

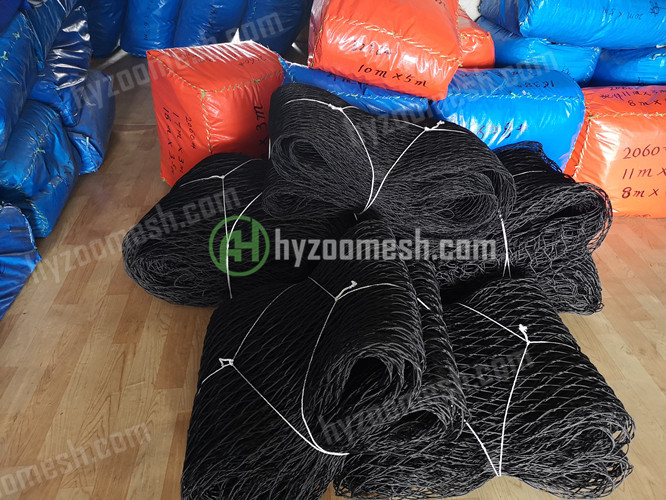

Black oxide stainless steel wire rope mesh details
Black oxide stainless steel wire rope mesh material selection:

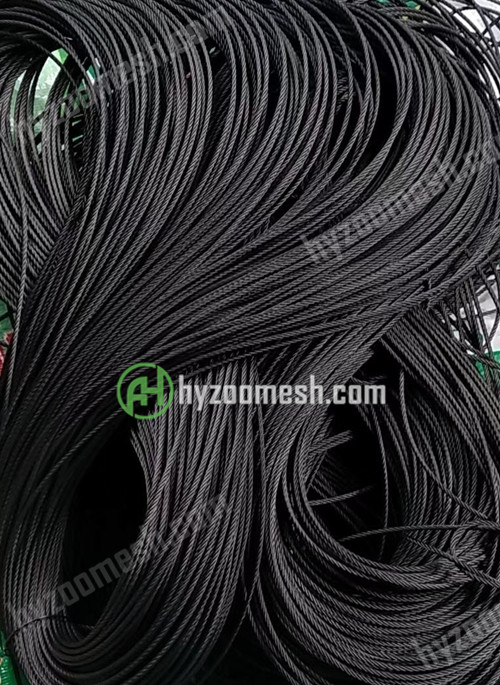

Black oxide stainless steel wire rope mesh is hand-woven from high-qualityAISI 304 or AISI 316 stainless steel wire rope. The black appearance is achieved through a chemical oxidation treatment, in which the surface of the stainless steel reacts with the chemicals in the black oxide solution to form a stable dark oxide layer. Unlike a painted coating, the black finish is produced through a chemical surface treatment rather than by simply applying a layer of paint to the wire rope.
AISI 304 stainless steel is the most commonly used material and can meet the requirements of most general outdoor and inland applications. AISI 316 stainless steel contains molybdenum (Mo), giving it better resistance to corrosion in environments exposed to salt and chlorides. Therefore, AISI 316 black oxide stainless steel wire rope mesh is particularly suitable forcoastal areas, marine environments, and other high-salinity or high-chloride conditions.
The choice between AISI 304 and AISI 316 can therefore be made according to the environmental conditions of the application, helping balance corrosion resistance, service requirements, and project cost.
Stainless steel black wire rope mesh specification selection:
In general, the size and characteristics of the animal are important factors in determining the appropriate mesh aperture, while the animal’s strength and the required level of protection help determine the wire rope diameter. The specific mesh opening and wire rope diameter should be selected according to the animal species, enclosure design, and actual application requirements.
Choosing the appropriate mesh specifications not only provides the required safety and protection but also helps avoid unnecessary material costs, making the overall project more economical and cost-effective.
Commonly used stainless steel cable mesh rope diameter and wire rope structure:
Rope diameter: 3/64″(1.2mm); 1/16″(1.6mm); 5/64″(2.0mm); 3/32″(2.4mm); 1/8″(3.2mm);
Rope structure: 7*7 structure
(i.e. one rope is twisted from 7 strands of fine steel wire rope, and each strand of fine steel wire rope is twisted from 7 steel wires)
Commonly used stainless steel zoo mesh and panel size:
Mesh size: 0.8″×0.8“, 1″×1“, 1.2″×1.2″, 1.5″×1.5″, 2″×2“, 2.4″×2.4″, 3″×3″, 3.6″×3.6″, 4″×4″, 4.7″×4.7“, 5″×5“
(Please refer to the following specification table for mesh size details)
Panel size (L×H): customised
Recommend Mesh Codes
Based on our nearly 30 years of production experience, the following are our commonly used black oxide stainless steel wire rope mesh specifications.
| Product code | Wire rope construction | Weight (kg/m²) | Wire rope diameter(mm) | Mesh aperture(mm) | Wire rope diameter(inch) | Mesh aperture(inch) |
| 1220 | 7×7 | 0.73 | 1.2mm | 20×20mm | 3/64″ | 0.8″×0.8″ |
| 1225 | 7×7 | 0.55 | 1.2mm | 25.4×25.4mm | 3/64″ | 1″×1″ |
| 1230 | 7×7 | 0.45 | 1.2mm | 30×30mm | 3/64″ | 1.2″×1.2″ |
| 1238 | 7×7 | 0.4 | 1.2mm | 38×38mm | 3/64″ | 1.5″×1.5″ |
| 1251 | 7×7 | 0.25 | 1.2mm | 51×51mm | 3/64″ | 2″×2″ |
| 1625 | 7×7 | 1.1 | 1.6mm | 25.4×25.4mm | 1/16” | 1″×1″ |
| 1630 | 7×7 | 0.9 | 1.6mm | 30×30mm | 1/16” | 1.2″×1.2″ |
| 1638 | 7×7 | 0.65 | 1.6mm | 38×38mm | 1/16” | 1.5″×1.5″ |
| 1651 | 7×7 | 0.5 | 1.6mm | 51×51mm | 1/16” | 2″ x 2″ |
| 1660 | 7×7 | 0.45 | 1.6mm | 60×60mm | 1/16” | 2.4″ x 2.4″ |
| 1676 | 7×7 | 0.37 | 1.6mm | 76×76mm | 1/16” | 3″ x 3″ |
| 2051 | 7×7 | 0.8 | 2.0mm | 51×51mm | 5/64″ | 2″ x 2″ |
| 2060 | 7×7 | 0.76 | 2.0mm | 60×60mm | 5/64″ | 2.4″ x 2.4″ |
| 2076 | 7×7 | 0.5 | 2.0mm | 76×76mm | 5/64″ | 3″ x 3″ |
| 20102 | 7×7 | 0.4 | 2.0mm | 102×102mm | 5/64″ | 4″ x 4″ |
| 2451 | 7×7 | 1.07 | 2.4mm | 51×51mm | 3/32″ | 2″ x 2″ |
| 2460 | 7×7 | 0.87 | 2.4mm | 60×60mm | 3/32″ | 2.4″ x 2.4″ |
| 2476 | 7×7 | 0.72 | 2.4mm | 76×76mm | 3/32″ | 3″ x 3″ |
| 2490 | 7×7 | 0.60 | 2.4mm | 90×90mm | 3/32″ | 3.6″ x 3.6″ |
| 24102 | 7×7 | 0.51 | 2.4mm | 102×102mm | 3/32″ | 4″ x 4″ |
| 3251 | 7×19 | 2.1 | 3.2mm | 51×51mm | 1/8” | 2″ x 2″ |
| 3260 | 7×19 | 1.65 | 3.2mm | 60×60mm | 1/8” | 2.4″ x 2.4″ |
| 3276 | 7×19 | 1.4 | 3.2mm | 76×76mm | 1/8” | 3″ x 3″ |
| 3290 | 7×19 | 1.1 | 3.2mm | 90×90mm | 1/8” | 3.6″ x 3.6″ |
| 32102 | 7×19 | 0.96 | 3.2mm | 102×102mm | 1/8” | 4″ x 4″ |
| 32120 | 7×19 | 0.76 | 3.2mm | 120×120mm | 1/8” | 4.7″ x 4.7″ |
| 32127 | 7×19 | 0.7 | 3.2mm | 127×127mm | 1/8” | 5″ x 5″ |
| 32152 | 7×19 | 0.61 | 3.2mm | 152×152mm | 1/8” | 6″ x 6″ |
Product Parameters
Stainless Steel Wire Rope Woven ZooMesh Key Points:
Hebei Hangyun Import & Export Co.,Ltd. is a professional manufacturer and exporter of stainless steel wire rope mesh in China. We have approximately 2500 square meters of production space and a team of up to 45employees dedicated to the production and weaving of stainless steel wire rope mesh. With extensive manufacturing experience, we provide stainless steel mesh solutions for animal enclosures, architectural applications, and other protective structures.
Stainless steel wire rope mesh is widely used inzoos,bird parks, wildlife parks, and other animal facilities as a safe and visually unobtrusive enclosure solution. Its smooth and flexible structure helps minimize the risk of damaging animal fur or feathers while providing reliable protection. At the same time, its highly transparent design helps maintain clear sightlines, allowing visitors to observe animals more naturally while supporting a comfortable viewing experience.
