Stainless Steel Ferrule Mesh
Stainless steel ferrule mesh is manufactured from high-quality 304 or 316 stainless steel wire ropes and assembled with seamless stainless steel ferrules. The mesh is produced using specialized molds to ensure consistent dimensions, strength, and appearance. As an innovative alternative to traditional fences and bars used in zoological gardens, it is widely known among customers as zoo mesh.
According to the manufacturing method, stainless steel wire rope mesh can be divided into two main types: stainless steel woven mesh and stainless steel ferrule mesh.
Stainless steel ferrule mesh, also referred to as stainless steel cable ferrule mesh, is a flexible metal mesh formed by mechanically crimping seamless stainless steel ferrules onto stainless steel wire ropes. This construction provides excellent strength, durability, and long-term performance in both indoor and outdoor environments.
Compared with stainless steel woven mesh, ferrule mesh offers a more uniform and refined appearance, making it particularly attractive for architectural and decorative applications. Its elegant design, combined with high tensile strength, corrosion resistance, and outstanding durability, has made it a popular choice among architects, designers, and project contractors worldwide.
Core Features & Product Advantages
Our stainless steel ferrule mesh solves common industry pain points such as loose knots, surface burrs, easy rusting, poor flexibility and uneven mesh spacing, providing stable and aesthetic metal mesh solutions for high-standard projects.
- Ferrule Locked Knotless Structure – Adopts seamless ferrule crimping at each wire rope intersection. No loose knots, no wire slipping, uniform mesh tension and stable structure. Effectively improves overall impact resistance and load-bearing capacity compared with traditional knotted mesh.
- Premium Anti-Corrosion Material – Available in AISI 304, 304L, 316, 316L stainless steel. 316 marine grade material resists salt water, salt spray, acid and alkali erosion, perfectly suitable for coastal, outdoor and humid environments, no rust or discoloration for long-term outdoor use.
- High Tensile Strength & Impact Resistance – 7×7 / 7×19 wire rope strand structure precise ferrule compression. The mesh maintains excellent toughness and tensile strength, not easy to break or deform under heavy impact, meeting safety standards for zoo animal enclosure and high-rise building isolation.
- Flexible & Easy to Shape – Lightweight and highly flexible, can be bent, curled and cut freely to fit curved surfaces, irregular facades and special-shaped engineering structures. Suitable for creative architectural decoration and personalized enclosure design.
- Smooth & Safe Surface – Polished wire rope and flat crimped ferrules leave no sharp burrs, preventing scratching injuries for humans and animals. Transparent mesh vision ensures unobstructed landscape viewing while achieving safety protection.
- Weather & Aging Resistance – Stable physical performance under extreme temperature and weather conditions, resistant to UV aging, wind and rain erosion. No fading, no cracking, low maintenance cost for long-term outdoor service.
- Customizable & Easy Installation – Custom wire diameter, mesh aperture, mesh width and length. Supports custom irregular shapes and logo marking. Equipped with matching installation accessories for fast and convenient on-site assembly.
Classification
Stainless steel ferrule mesh, also known as stainless steel cable ferrule mesh, is a flexible metal mesh fabricated from high-quality stainless steel wire ropes and seamless stainless steel ferrules. It can be catagorized by material grade and surface finish.
Material: AISI 304 stainless steel and AISI 316 stainless steel
Surface Finish: Natural stainless steel finish and black oxide finish
Application Cases

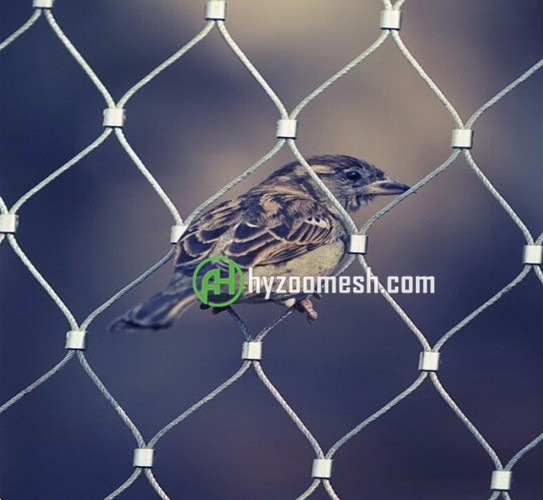

Stainless steel ferrule mesh, also known as stainless steel buckle mesh, is hand-woven from high-quality stainless steel wire ropes and securely connected with stainless steel ferrules at each intersection. This construction creates a strong, flexible, and uniform mesh structure. It is widely used in zoo projects, bird aviaries, monkey enclosures, large-animal fencing, decorative applications, building protection, and other protective structures.
With nearly 30 years of manufacturing experience, Hangyun has supplied stainless steel ferrule mesh to customers in many countries and regions around the world. Our products are manufactured to meet the requirements of different animal enclosure, architectural, and protective applications.

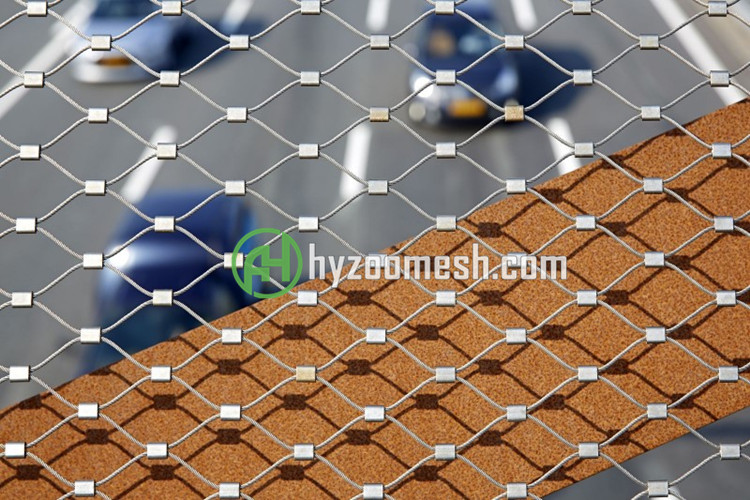

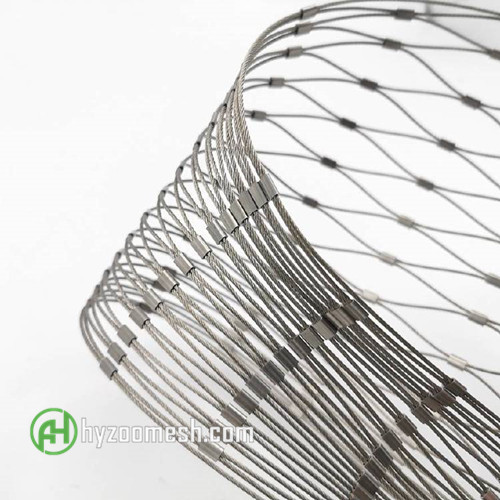

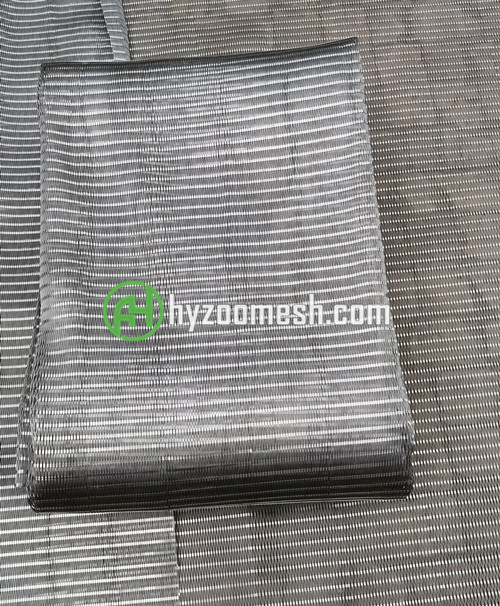

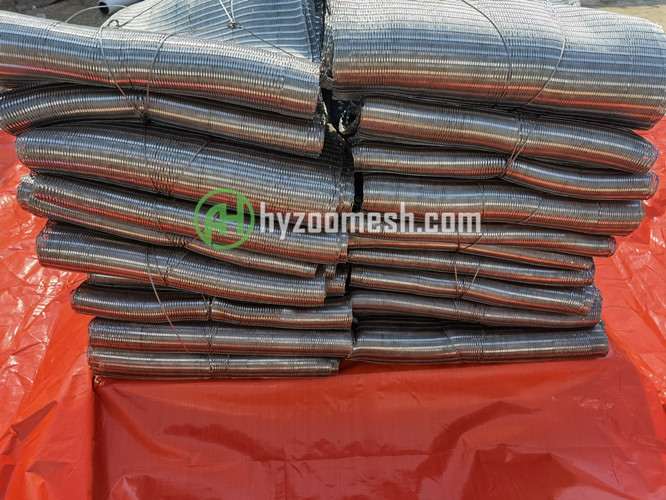

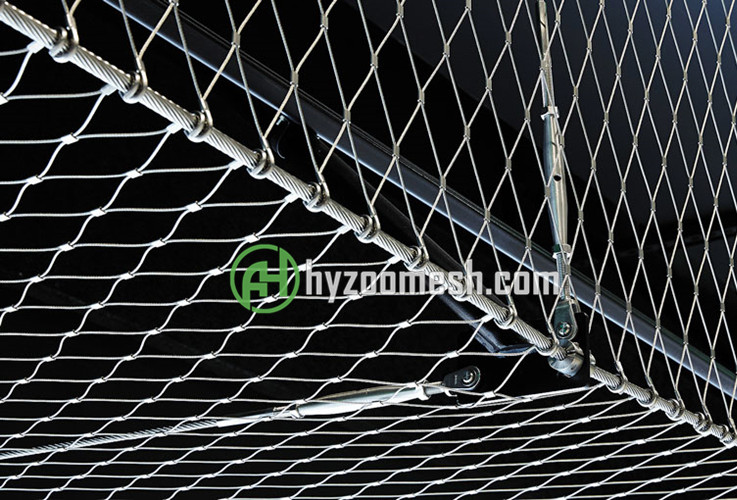

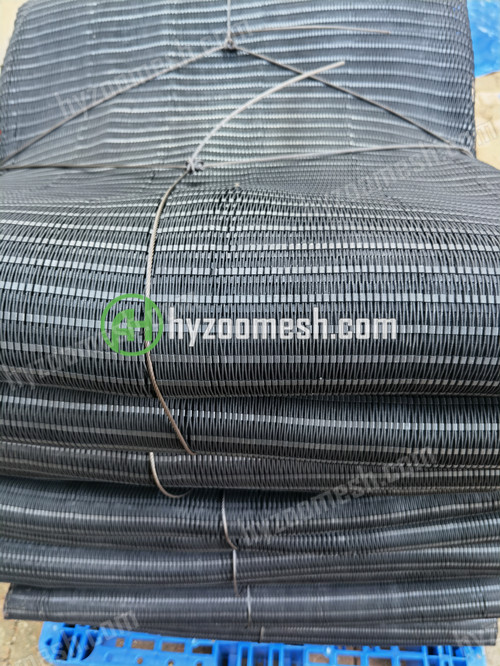

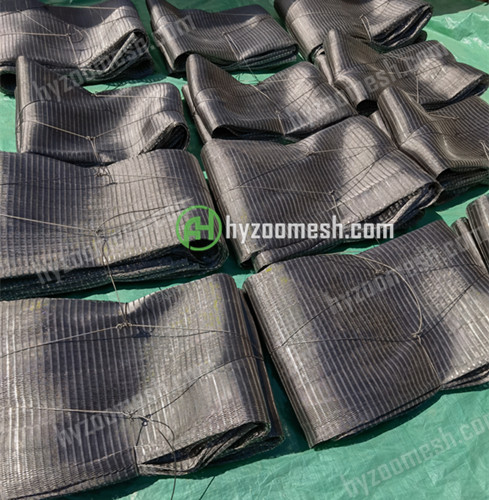

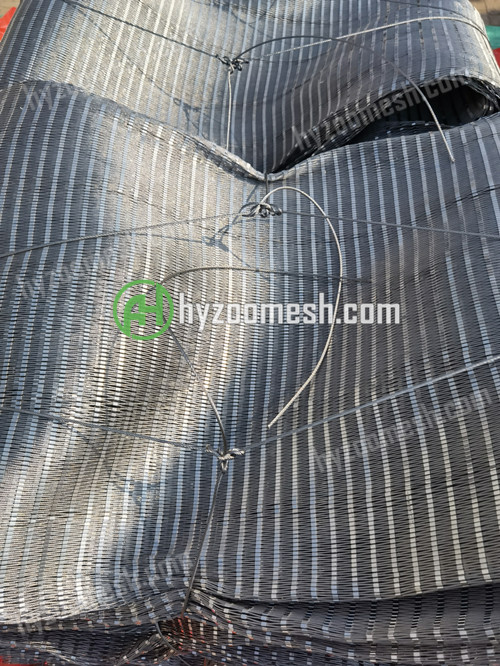

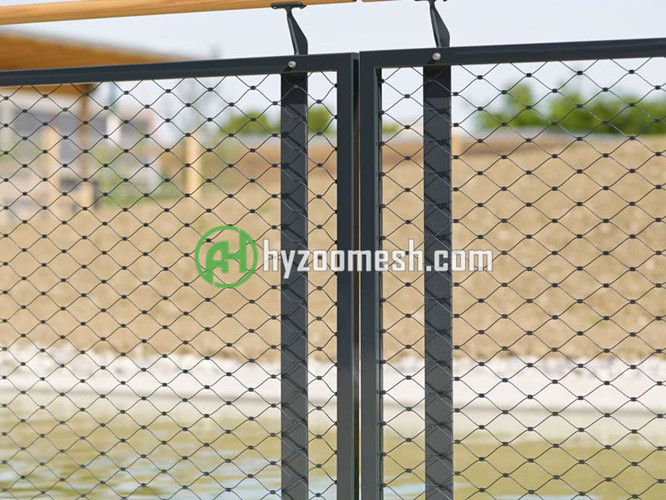

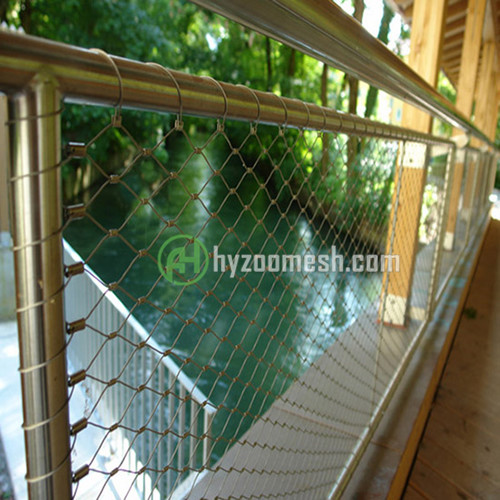

Below are product photos and application project images of Hangyun stainless steel ferrule mesh, showing its appearance, structure, and use in different projects.
Stainless Steel Ferrule Mesh-Material Details
Stainless Steel Ferrule Mesh Material Selection:

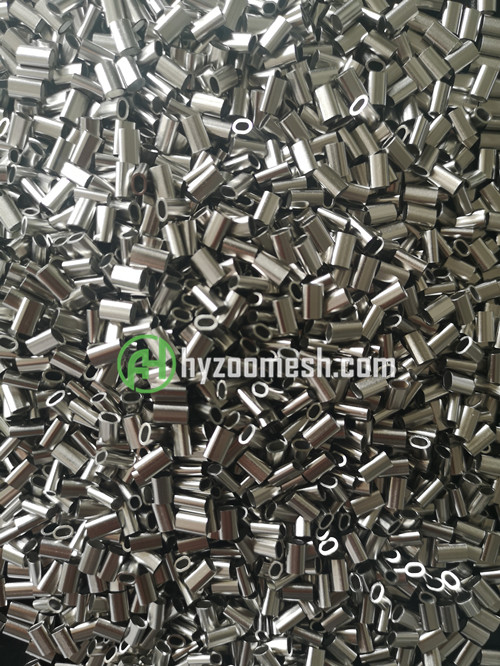

Our stainless steel ferrule mesh is manufactured from premium stainless steel wire ropes and seamless stainless steel ferrules. It is available in AISI 304 and AISI 316 stainless steel to meet different environmental and application requirements.
AISI 304 stainless steel is the standard material for most ferrule mesh projects. It offers excellent strength, corrosion resistance, and long-term durability, making it suitable for the majority of indoor and outdoor applications.
AISI 316 stainless steel contains molybdenum, providing superior resistance to corrosion in harsh environments. It is the preferred choice for coastal areas, marine environments, humid climates, and locations exposed to salt spray or high chloride levels.
Choosing the right stainless steel grade helps maximize the service life of the mesh while maintaining its strength and appearance in demanding outdoor conditions. It also ensures reliable performance for zoo enclosures, aviaries, wildlife parks, and architectural applications.
Stainless Steel Ferrule Mesh Specification Selection:
Selecting the appropriate mesh specification is essential for achieving both safety and cost-effectiveness. In general, the mesh opening size should be determined by the animal’s size, enclosure requirements, and the level of containment needed. The wire rope diameter should be selected according to factors such as the animal’s strength, behavior, activity level, and the required level of protection.
Different animal species have different enclosure and safety requirements. Therefore, the ideal combination of mesh opening and wire rope diameter should be selected based on the animal species, enclosure design, environmental conditions, and specific project requirements.
Choosing the appropriate specifications provides reliable protection, structural stability, and long-term durability while avoiding unnecessary material use. A properly selected mesh specification can therefore helpoptimize material consumption, control project costs, and achieve a practical balance between safety and economy.
Commonly used stainless steel ferrule mesh rope diameter and wire rope structure:
Rope diameter: 3/64″(1.2mm); 1/16″(1.6mm); 5/64″(2.0mm); 3/32″(2.4mm); 1/8″(3.2mm);
Rope structure: 7*7 structure
(i.e. one rope is twisted from 7 strands of fine steel wire rope, and each strand of fine steel wire rope is twisted from 7 steel wires)
Commonly used stainless steel zoo mesh and panel size:
Mesh size: 0.8″×0.8“, 1″×1“, 1.2″×1.2″, 1.5″×1.5″, 2″×2“, 2.4″×2.4″, 3″×3″, 3.6″×3.6″, 4″×4″, 4.7″×4.7“, 5″×5“
(Please refer to the following specification table for mesh size details)
Panel size (L×H): customised
Recommend Mesh Codes
Based on our 30 years of production experience, the following are our commonly used stainless steel ferrule mesh specifications
| Stainless Steel Ferrule mesh | ||||
| Product code | Wire rope construction | Breaking force(KN) | Wire rope diameter(mm) | Mesh aperture(mm) |
| F32120 | 7 X 19 | 7.38 | 3.2 | 120 x 208 |
| F32100 | 7 X 19 | 7.38 | 3.2 | 100 x 173 |
| F3290 | 7 X 19 | 7.38 | 3.2 | 90 x 156 |
| F24100 | 7 X 7 | 4.18 | 2.4 | 100 x 173 |
| F2490 | 7 X 7 | 4.18 | 2.4 | 90 x 156 |
| F2480 | 7 X 7 | 4.18 | 2.4 | 80 x 139 |
| F2470 | 7 X 7 | 4.18 | 2.4 | 70 x 121 |
| F20100 | 7 X 7 | 3.17 | 2.0 | 100 x 173 |
| F2090 | 7 X 7 | 3.17 | 2.0 | 90 x 156 |
| F2080 | 7 X 7 | 3.17 | 2.0 | 80 x 139 |
| F2070 | 7 X 7 | 3.17 | 2.0 | 70 x 121 |
| F1680 | 7 X 7 | 2.17 | 1.6 | 80 x 139 |
| F1670 | 7 X 7 | 2.17 | 1.6 | 70 x 121 |
| F1660 | 7 X 7 | 2.17 | 1.6 | 60 x 104 |
| F1651 | 7 X 7 | 2.17 | 1.6 | 51 x87 |
| F1280 | 7 X 7 | 1.22 | 1.2 | 80 x 139 |
| F1270 | 7 X 7 | 1.22 | 1.2 | 70 x 121 |
| F1260 | 7 X 7 | 1.22 | 1.2 | 60 x 104 |
| F1250 | 7 X 7 | 1.22 | 1.2 | 50 x 87 |
Product Parameters
Stainless Steel Ferrule Zoomesh Key Points:
Nowadays, stainless steel ferrule mesh has been widely adopted by zoos, bird parks, and wildlife parks as an ideal solution for animal protection and display. It not only helps ensure the safety and well-being of animals without protecting animals from scratches and injuries, but also provides visitors with a safe and clear viewing experience.
Hebei Hangyun is committed to providing 24/7 professional customer service to support clients around the world！
