Stainless Steel Aviary Mesh

Stainless steel aviary mesh is a high-end protective mesh used in bird sites, which is made of stainless steel wire rope raw materials and woven by hand.
Stainless steel aviary mesh can be used in various types of bird venues, with a variety of specifications and customized sizes, without being affected by bird species and bird venue shapes.
Also it can be used as a variety of bird cage construction wire mesh materials, such as aviary bird roof mesh, outdoor aviary netting, bird cage fencing, bird screen protection mesh, bird park aviary netting, bird fence mesh, bird safety mesh, bird exhibition mesh, macaw aviary wire mesh, crane fence mesh, flamingo fence netting, peacock fence mesh, ostrich enclosure mesh and eagle fence netting and so on.
Stainless steel aviary mesh, with beautiful in shape, large in scale. It is close to nature, can provide birds with a free and original ecological environment.

Material group :
AISI 304/316stainless steel
Mesh hole :
25.4mm x 25.4mm (1” x 1”), 30mm x 30mm(1.2 “x 1.2”), 38mm x 38mm(1.5” x 1.5”), 51mm x 51mm(2” x 2”)
Wire rope diameter :
1.2mm( 3/64”), 1.6mm(1/16”), 2.0mm(5/64″)
Weaving method:
         pure Hand-woven
         stainless steel color; black
Mesh Panel Size:
Model: 1225, 1230, 1238, 1251,1638, 1651, 2051, 2076…


Stainless steel cable mesh divided into two categories according to different color, Natural color stainless steel cable mesh and Black stainless steel cable mesh.
The stainless steel woven rope mesh is twisted and interwoven by the stainless steel wire rope to form a knot and linked together. This minimalist style of craftsmanship is the most dazzling product in stainless steel wire rope products. While providing the same intensity, the visual obstacles are greatly reduced, and it is easier to vanish. Without troublesome light reflection, viewing at a certain distance is almost completely invisible.

Stainless steel aviary mesh have many advantages for bird sites:
  1. Flexibility and elasticity: It can be arbitrarily pulled and folded without being destroyed. It can cover any shape of aviary with flexible mesh panle. Stainless steel bird mesh allow designers to give full play to their imaginations.
  2. Strong compression resistance: It can withstand the bite of animals. Stainless steel aviary mesh is lighter and more resistant to breakage than other aviary mesh products. Such as nylon mesh, welded mesh and wire mesh. The minimum breaking resistance of stainless steel wire rope is much higher than that of a single wire of the same diameter.
  3. Corrosion resistance: Stainless steel aviary mesh has long service life, cost saving. And it has natural UV resistance. Due to the rust-proof properties of this alloy material, the stainless steel aviary mesh is weather-resistant and has a service life of more than 30 years, without maintenance and cost savings.
  4. Large size custom available: It is suitable for walk-in aviaries and is able to fully cover the aviary.
  5. Beautiful and transparent: It does not block the line of sight, integrated with the surrounding environment, to give tourists the best viewing experience.
  1. Safety: Environmental protection, no harmful chemicals to animals.
  2. Pure hand-woven: The precision mold is used to ensure that the mesh size meets the standard. Each knot is cross-woven by hand to ensure that each mesh and each knot is never deformed, and each wire rope is guaranteed to be of high quality and smooth with no breakage, giving birds the best protection.

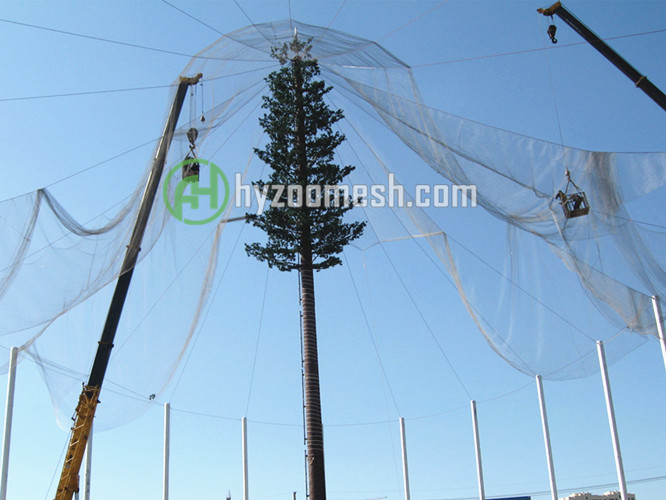

  3. Easy to install: As each piece of mesh is manufactured to order, this will allow the mesh to conform to the frame, making installation very simple.
More appropriate price solution ?

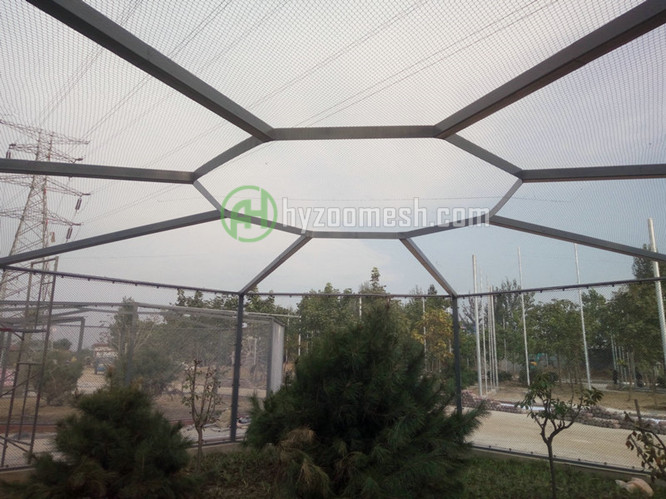

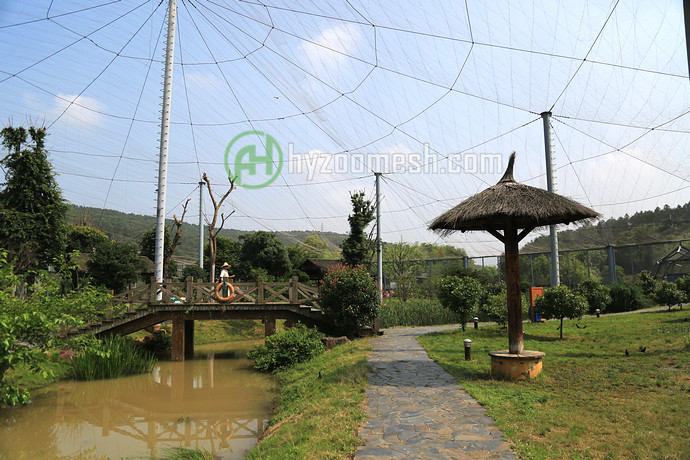

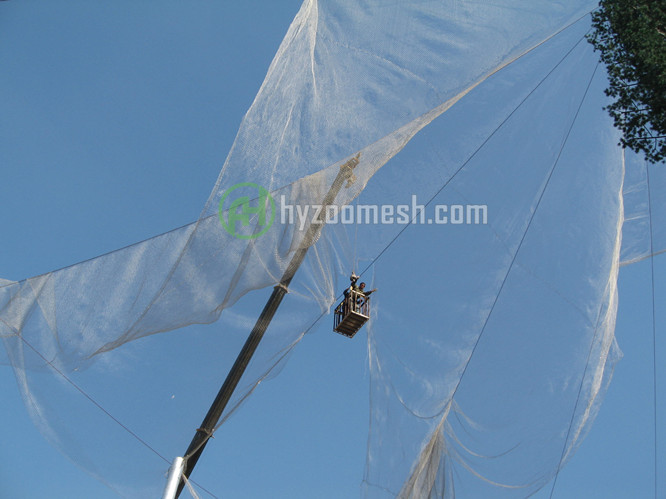

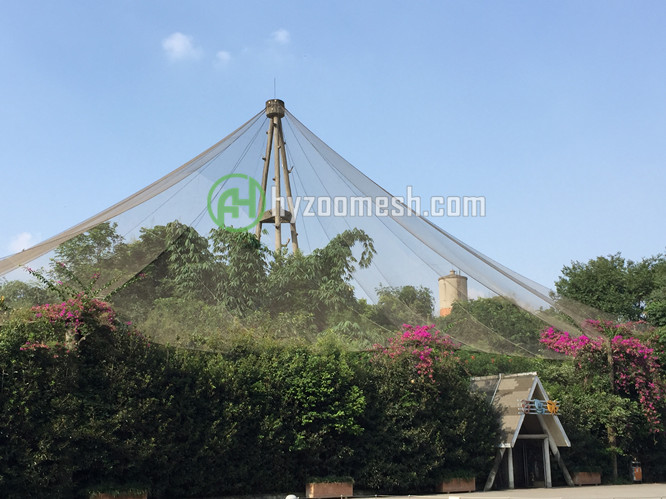

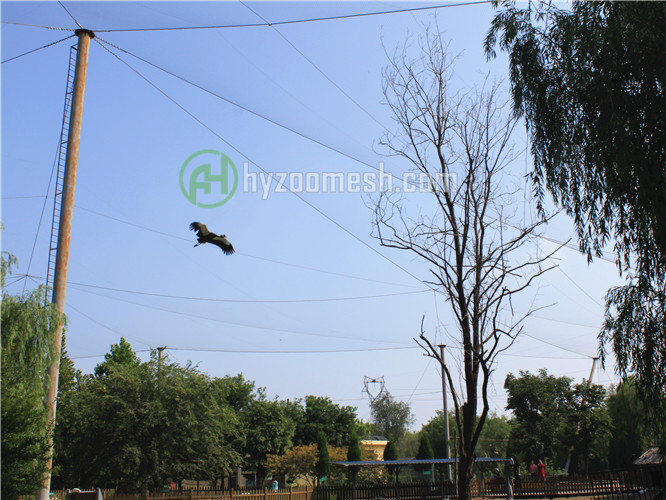

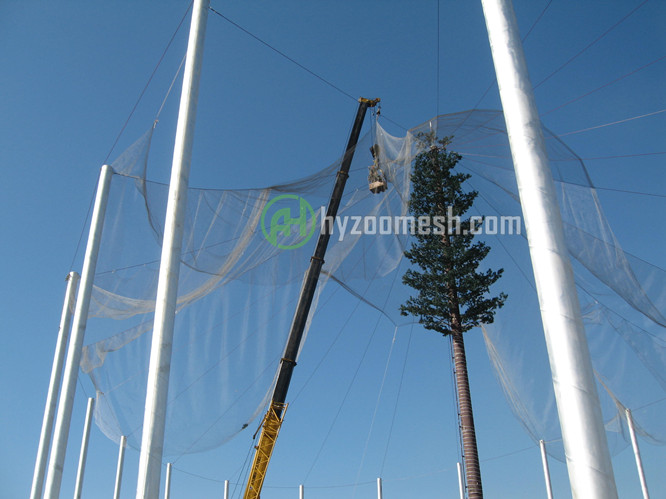

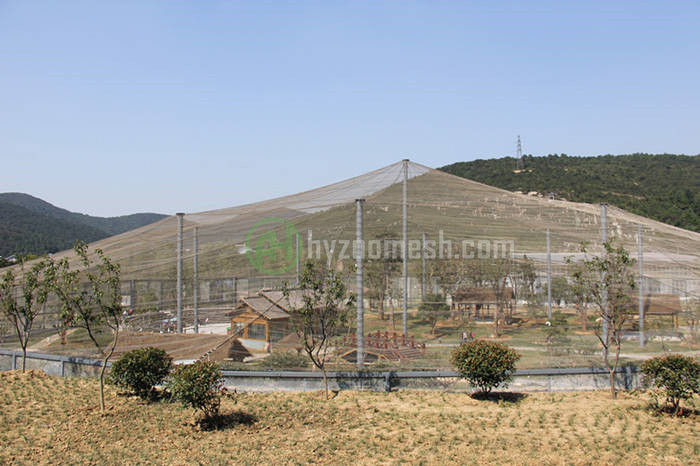

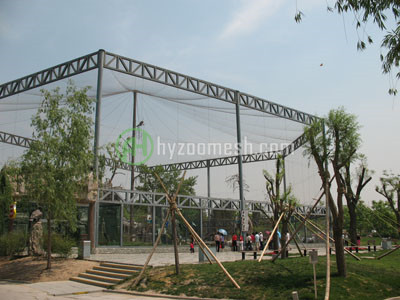

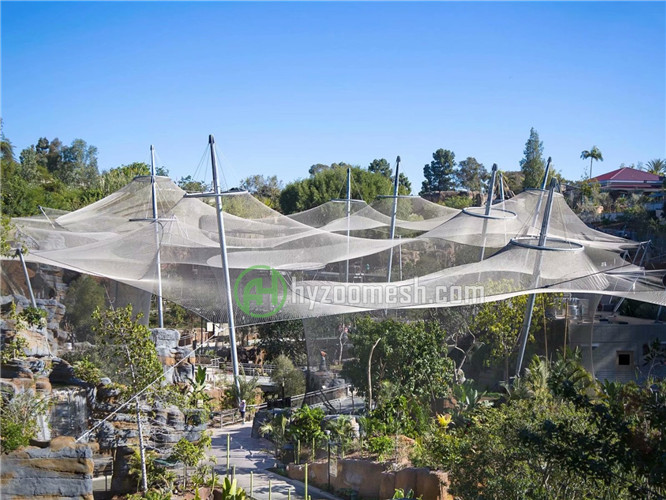

Application Cases

The Bird cage fencing widely used for kinds of Zoo Bird Cage fencing, bird netting fence, bird netting, bird enclosure netting, bird park wire rope netting, bird screen protection mesh, small birds exhibit barrier mesh, wire rope bird cage fence enclosures netting, zoo bird netting, and so on.

Stainless steel aviary mesh details

Stainless steel aviary mesh material selection:

Hand-woven stainless steel aviary mesh is made of high-quality stainless steel wire rope. Steel wire rope material is 304 or 316 stainless steel.

Common used material 304 stainless steel, is the main material, can meet the needs of most areas. And 316 stainless steel is mainly used in humid environment, such as coastal areas.

Stainless steel aviary mesh specification selection:

In general, the size of the bird determines the mesh aperture. The strength of the bird determines the diameter of the wire rope. Specific specifications need to be selected according to the actual bird species. Choosing the right product specifications can effectively reduce project costs.

Commonly used stainless steel aviary mesh rope diameter and wire rope structure:

Small birds (parrots, finches): 3/64″(1.2mm)
Medium-sized birds (cranes, flamingos, peacocks):1/16″( 1.6mm)
Large and fierce birds (ostrich, eagle, vulture): 5/64″(2.0mm), 3/32″(2.4mm)

Rope structure: 7*7 structure
(i.e. one rope is twisted from 7 strands of fine steel wire rope, and each strand of fine steel wire rope is twisted from 7 steel wires)

Commonly used stainless steel aviary mesh and panel size:

Small birds (parrots, finches): 0.8″×0.8“, 1″×1“, 1.2″×1.2″, 1.5″×1.5″

Medium-sized birds (cranes, flamingos, peacocks): 1.5″×1.5“, 2″×2“, 2.4″×2.4″, 3″×3″, 3.6″×3.6″, 4″×4″

Large and fierce birds (ostrich, eagle, vulture): 2″×2“, 2.4″×2.4″, 3″×3″, 3.6″×3.6″, 4″×4″

Panel size (L×H): customised

Recommend Mesh Codes

Based on our more than 20 years of production experience, we recommend the following common bird aviary mesh specifications for your reference.

Product codeWire rope constructionWeight (kg/m²)Wire rope diameter(mm)Mesh aperture(mm)Wire rope diameter(inch)Mesh aperture(inch)
16517×70.51.6mm51×51mm1/16″2″ x 2″
20517×70.82.0mm51×51mm5/64″2″ x 2″
20767×70.52.0mm76×76mm5/64″3″ x 3″
More appropriate price solution ?

Product Parameters

Stainless Steel Wire Rope Woven ZooMesh Key Points:

Min. breaking load (KN):3.2mm – 7.32; 2.4mm – 4.08; 2.0mm – 3.10; 1.6mm – 2.12; 1.2mm – 1.19
Wire rope construction:3.2mm – 7*19; all others – 7*7
Material group:AISI 304, 304L , 316, 316L stainless steel
Mesh panel size:35’ x 70’ (10.6m x 21.3m) or customers’ required sizes
Mesh color:Stainless steel natural color /  Black color / Bronze color
Packing:the mesh will be rolled and packed in PP woven bag
Country of Origin:China
Domestic shipping:the mesh is available for shipping to all countries outside the China
Shipping way:by sea, by air, or by express like FedEx, DHL, UPS
Price term:
