Eagles are powerful birds of prey that require secure, durable, and well-designed enclosure systems. For eagle aviaries, the mesh needs to provide sufficient strength and durability while maintaining good visibility, ventilation, and long-term outdoor performance. Traditional wire mesh may be prone to corrosion or deformation in demanding outdoor environments and may not always meet the requirements of large raptor enclosures.
At HangYun ZooMesh, we provide stainless steel eagle aviary mesh designed specifically for bird-of-prey and zoo enclosure applications. Made from high-quality stainless steel wire rope, our mesh combines strength, flexibility, corrosion resistance, and excellent visibility to create a reliable barrier for eagles and other large birds of prey. Different wire rope diameters and mesh openings are available to meet the requirements of different species, enclosure sizes, and project designs.
Stainless steel tunnel channel mesh material selection:
Stainless steel tunnel channel mesh is hand-woven from high-quality stainless steel wire rope and is available in AISI 304 and AISI 316 stainless steel. It offers excellent corrosion resistance, high tensile strength, and good durability, making it resistant to breaking under normal use. The smooth surface helps reduce the risk of catching or damaging animal fur, making it a suitable choice for a variety of zoo animal tunnel applications.
AISI 304 stainless steel is suitable for most indoor and outdoor environments and can meet the requirements of the majority of zoo applications.AISI 316 stainless steel contains molybdenum, which provides better resistance to chloride-related corrosion than 304 stainless steel. Therefore, 316 stainless steel is particularly recommended for more demanding environments, such as coastal areas, marine climates, humid environments, and tropical rainforests, especially where exposure to salt, moisture, or chlorides is higher.
Why Choose Stainless Steel Eagle Mesh
1. High Strength and Excellent Load-bearing Capacity
The stainless steel woven net is made by weaving stainless steel wire rope net. It has good tensile strength and durability, and is suitable for applications such as animal enclosures, birdhouses, large open birdhouses, etc. which have high requirements for safety.
2. Excellent Flexibility
Unlike rigid welding nets or metal sheets, the stainless steel wire rope woven mesh has certain flexibility. It can be bent, stretched and folded, and is capable of adapting to different shaped installation structures, especially suitable for curved surfaces, irregular structures and large fences.
3. Good Visual Transparency
The woven net usually adopts a rhombic structure, and the surface has certain flexibility. The open mesh structure can reduce visual obstruction, allowing zoo visitors to observe the animals more clearly. At the same time, natural light and air can pass through the net surface well, so it is particularly suitable for aviaries and animal display areas.
4. Corrosion Resistance, not prone to rusting
The stainless steel material has excellent corrosion resistance and can be used in outdoor environments for a long time. AISI 304 is suitable for many ordinary outdoor environments, while in coastal areas, high humidity or salt spray environments, AISI 316 containing molybdenum elements can be considered, as it has stronger corrosion resistance.
Why Stainless Steel Cable Netting Outperforms Alternatives
1. Material Comparison Table
| Material | Lifespan | Tensile Strength | Corrosion Resistance | Maintenance |
| Galvanized Steel | 5-8 yrs | 350-500 MPa | Moderate | High |
| PVC-Coated Wire | 3-5 yrs | 200-300 MPa | Poor | Moderate |
| Aluminum | 10-12 yrs | 200-250 MPa | Good | Low |
| 304/316 Stainless Steel | 30+ yrs | 650-850 MPa | Excellent | None |
2. Unmatched Durability
Corrosion Resistance: 316L stainless steel contains 2% Mo, making it immune to marine environments and acidic conditions. This is vital for eagle aviaries near coastlines or in humid regions.
UV Stability: Unlike plastic nets,stainless steel eagle aviary mesh retains its strength under prolonged sunlight exposure.
3. Animal-Centric Design
Soft Touch: The soft raptor enclosure mesh prevents feather damage during collisions, reducing stress for eagles.Comparative tests show that the feather damage rate of eagles using stainless steel rope nets is reduced by 85%.
Transparency: 80% light transmittance ensures natural lighting, promoting healthy feather growth and activity patterns.
4. Environment Integration
Natural Appearance:stainless steel rope mesh’s metallic sheen blends with landscapes, creating an unobtrusive barrier.
Zero Maintenance: No painting or coating required, minimizing chemical waste.
Engineering Features of Hangyun Zoomesh Eagle Aviary Mesh Systems
1. Aircraft Cable Construction

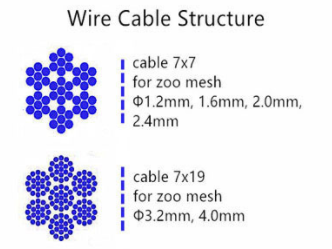

★7 x 7 or 7×19 Strand Configuration:
7 bundles of 7 or 19 wires each
Breaking strength: 1,450 lbs (3.2mm cable)
Fatigue resistance: 1M+ flex cycles
★Custom Diameter Options:
1.2mm to 3.2mm cables
50mm to 300mm mesh openings
2. Patented Clamping System
★Forged stainless steel clamps
★4-point compression locking
★Zero slippage under 1,200N tension
3. Avian-Safe Surface Treatment
★Electro-polished finish (Ra ≤ 0.8μm)
★No toxic coatings or sharp edges
★UV-resistant up to 10+ years
Case Study: Bald Eagle Sanctuary in Alaska
Project Specs:
8,000 m² free-flight enclosure
-40°C to +35°C temperature range
90% humidity + coastal salt spray
HY Zoomesh Solution:
3.2mm cables with 102mm mesh to make eagle aviary mesh
Horizontal tensioning system
220kN anchor points
Results After 5 Years:
0% corrosion observed
2 prevented escape attempts
87% reduction in maintenance costs
Technical Specifications Breakdown for Eagle Aviary Mesh
A. Load Capacity Analysis
Mesh Size | Cable Diameter | Vertical Load | Horizontal Load |
76mm | 2.4mm | 480 kg/m² | 320 kg/m² |
102mm | 3.2mm | 650 kg/m² | 450 kg/m² |
152mm | 4.0mm | 890 kg/m² | 620 kg/m² |
B. Environmental Resistance
Temperature range: -200°C to 550°C
Salt spray resistance: 5,000+ hours
UV degradation: <3% over 10 years
Purchasing Guide: How to Choose the Right Stainless Steel Rope Mesh
1. Material Selection
304 vs. 316 stainless steel
★304 stainless steel eagle aviary mesh: Cost-effective for dry climates (e.g., interior eagle aviaries).
★316 stainless steel eagle aviary mesh: Essential for coastal or high-humidity regions, offering 3x better saltwater resistance.
2. Wire Diameter
★Small eagles (e.g., American kestrel): 1.2mm-2.0mm diameter.
★Large raptor(e.g., golden eagle): 2.4mm-3.2mm diameter.
3. Mesh Size
★General Purpose: 51 × 51mm-102 x 102mm for balanced visibility and safety.
★Nest Area: Smaller 25×25mm mesh to prevent eggs from slipping through.
4. Manufacturing Standards
★Weaving Technique:Preferably 7×7 or 7×19 stainless steel rope woven
★Surface Finish:Choose glossy or sandblasted finish surface
Installation Best Practices for Eagle Aviaries
1. Tensioning Protocol
★Pre-tension to 15% of breaking strength
★Use dynamometric tension gauges
★Allow 2% thermal expansion margin
2. Structural Integration
★Recommended support post spacing:
3m (vertical)
4.5m (horizontal)
★Post material requirements:
Minimum 150mm diameter schedule 40 pipe
Galvanized steel with powder coating
3. Safety Enhancements
★Install redundant cables at impact zones
★Add visual markers every 2m²
★Implement dual-layer mesh in feeding areas
FAQs: Expert Answers for Eagle Aviary Mesh
Q: Can eagles damage stainless steel aviary mesh?
A: Our 3.2mm cables withstand 2,350N peak impact forces – equivalent to a 15kg eagle striking at 40km/h.
Q: How to clean droppings from raptor enclosure mesh?
A: Simply rinse with water – the non-porous surface prevents buildup. No chemicals needed.
Q: What mesh size prevents talon entanglement?
A: 76mm-102mm openings allow secure perching while preventing foot injuries.
Conclusion: Future-Proof Your Eagle Habitat
Modern avian conservation demands enclosure materials that match the strength and longevity of the birds they protect. Hangyun zoomesh stainless steel eagle aviary mesh provides:
Lifespan matching eagle generations (30+ years) Military-grade security against escapes/predators Chemical-free safety for sensitive raptors Climate immunity from desert to tundra
Contact our raptor enclosure mesh experts to design your custom eagle enclosure solutions!
YouTube: https://www.youtube.com/@hyzoomesh
Twitter: https://x.com/HangYun1006
Code o |
Wire Rope Construction |
Min. Breaking Load(KN) | Wire Rope Diameter | Aperture | Unit weight (kg/sqm)
|
Application
| ||
inch | cm | inch | cm | |||||
32152 | 7 x 19 | 7.32 | 1/8 | 3.2 | 6’’ x 6’’ | 152 x 152 | 0.61 |
Large and fierce animals like tiger,lion,leopard,orangutan |
32127 | 7 x 19 | 7.32 | 1/8 | 3.2 | 5’’ x 5’’ | 127 x 127 | 0.70 | |
32120 | 7 x 19 | 7.32 | 1/8 | 3.2 | 4.7’’ x 4.7’’ | 120 x 120 | 0.76 | |
32102 | 7 x 19 | 7.32 | 1/8 | 3.2. | 4’’ x 4’’ | 102 x 102 | 0.96 | |
3290 | 7 x 19 | 7.32 | 1/8 | 3.2 | 3.6’’ x 3.6’’ | 90 x 90 | 1.10 | |
3276 | 7 x 19 | 7.32 | 1/8 | 3.2 | 3’’ x 3’’ | 76 x 76 | 1.40 | |
3260 | 7 x 19 | 7.32 | 1/8 | 3.2 | 2.4’’ x 2.4’’ | 60 x 60 | 1.65 | |
3251 | 7 x 19 | 7.32 | 1/8 | 3.2 | 2’’ x 2’’ | 51 x 51 | 2.10 | |
24152 | 7 x 7 | 4.08 | 3/32 | 2.4 | 6’’ x 6’’ | 152 x 152 | 0.35 |
Large and fierce animals like tiger,lion,leopard,orangutan,monkey |
24127 | 7 x 7 | 4.08 | 3/32 | 2.4 | 5’’ x 5’’ | 127 x 127 | 0.42 | |
24102 | 7 x 7 | 4.08 | 3/32 | 2.4 | 4’’ x 4’’ | 102 x 102 | 0.51 | |
2490 | 7 x 7 | 4.08 | 3/32 | 2.4 | 3.6’’ x 3.6’’ | 90 x 90 | 0.60 | |
2476 | 7 x 7 | 4.08 | 3/32 | 2.4 | 3’’ x 3’’ | 76 x 76 | 0.72 | |
2460 | 7 x 7 | 4.08 | 3/32 | 2.4 | 2.4’’ x 2.4’’ | 60 x 60 | 0.87 | |
2451 | 7 x 7 | 4.08 | 3/32 | 2.4 | 2’’ x 2’’ | 51 x 51 | 1.07 | |
2076 | 7 x 7 | 3.10 | 5/64 | 2 | 3’’ x 3’’ | 76 x 76 | 0.50 |
Small cat animals like monkey |
2060 | 7 x 7 | 3.10 | 5/64 | 2 | 2.4’’ x 2.4’’ | 60 x 60 | 0.76 | |
2051 | 7 x 7 | 3.10 | 5/64 | 2 | 2’’ x 2’’ | 51 x 51 | 0.80 | |
2038 | 7 x 7 | 3.10 | 5/64 | 2 | 1.5’’ x 1.5’’ | 38 x 38 | 1.10 | |
16102 | 7 x 7 | 2.12 | 1/16 | 1.6 | 4’’ x 4’’ | 102 x 102 | 0.26 |
Large birds |
1676 | 7 x 7 | 2.12 | 1/16 | 1.6 | 3’’ x 3’’ | 76 x 76 | 0.37 | |
1660 | 7 x 7 | 2.12 | 1/16 | 1.6 | 2.4’’ x 2.4’’ | 60 x 60 | 0.45 | |
1651 | 7 x 7 | 2.12 | 1/16 | 1.6 | 2’’ x 2’’ | 51 x 61 | 0.50 | |
1638 | 7 x 7 | 2.12 | 1/16 | 1.6 | 1.5’’ x 1.5’’ | 38 x 38 | 0.65 |
Small birds |
1630 | 7 x 7 | 2.12 | 1/16 | 1.6 | 1.2’’ x 1.2’’ | 30 x 30 | 0.90 | |
1625 | 7 x 7 | 2.12 | 1/16 | 1.6 | 1’’ x 1’’ | 25.4 c 25.4 | 1.10 | |
12102 | 7 x 7 | 1.19 | 3/64 | 1.2 | 4’’ x 4’’ | 102 x 102 | 0.15 |
Large birds |
1276 | 7 x 7 | 1.19 | 3/64 | 1.2 | 3’’ x 3’’ | 76 x 76 | 0.19 | |
1251 | 7 x 7 | 1.19 | 3/64 | 1.2 | 2’’ x 2’’ | 51 x 51 | 0.25 | |
1238 | 7 x 7 | 1.19 | 3/64 | 1.2 | 1.5’’ x 1.5’’ | 38 x 38 | 0.40 |
Small birds,aviary |
1230 | 7 x 7 | 1.19 | 3/64 | 1.2 | 1.2’’ x 1.2’’ | 30 x 30 | 0.45 | |
1225 | 7 x 7 | 1.19 | 3/64 | 1.2 | 1’’ x 1’’ | 25.4 x 25.4 | 0.55 | |
1220 | 7 x 7 | 1.19 | 3/64 | 1.2 | 0.8’’ x 0.8’’ | 20 x 20 | 0.73 | |
